- Size: 6500*1500*1450mm
- Place of Origin: botou of cangzhou
- Brand Name: zhongtuo
- Model Number: ZT0040003
- Weight: 4500.000 kg

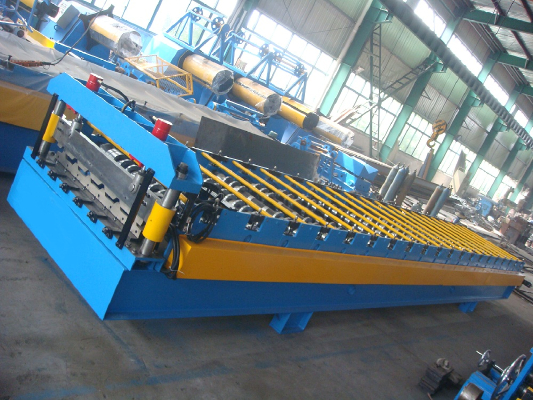

tile forming machine, wall and roof roll forming machine
tile forming machine, wall and roof roll forming machine is fond by most our customers. Good quality guarantee the precise sizes accordant with our quotation.
no scratch, dent and damage. high speed. Thickness is as your requests. if need price, you can send us your drawings profile by email or sample by international express.
SPECIFICATIONS OF tile forming machine, wall and roof roll forming machine:
UNCOILER:
Type of Uncoiler: Manual
Material of coil: Color Bond Steel Coill
Thickness of sheet: 0.4mm-0.8mm
Width of coil: 1000mm-1250mm
Weight of coil: ≤ 5 mt
tile forming machine, wall and roof roll forming machine:
Type of Forming: Single layer forming
Stands of Forming: 14 stations
Roller Diameter: 72mm – 80mm
Thickness of Chromic plating of roller surface:0.05mm –0.06mm
Speed of Forming:3.0m-5m/minute
Required Power: 4.0-7.0kw
Size of Roofing Step Tile Roll Forming Machine: 8500mm x 1500mm x1200mm
Weight of Forming Machine: 6-8 Tons
Rollers of tile forming machine, wall and roof roll forming machine are made of the bearing steel Cr15 to strike, distressing to annealing, quenching, tempering, and Parkerizing,
such heat treatment process. The surface hardness reached HRC60 degree. All the rollers are made by the CNC machine tools, which guarantees the accuracy of
the roller`s sizes and prolongs its working life.
HYDRAULIC CUTTER:
Hydraulic cutter Shearing pressure: 10-12MPa
Power: 5.5KW
CONTORL CABINET
· PLC Panasonic (from Japan)
· Touch screen Hitech (from japan)
